Why is Confusion Common in Warehouse Racking Types
When searching for a steel racking system for your warehouse online, you will likely encounter a flood of conflicting results. Some listings display light-duty shelving for retail shops, while others discuss massive industrial storage structures for factories. This common confusion reflects a real-world dilemma business owners face when setting up their storage facilities.
There is a vast gap between buying generic metal shelves to pile up goods and installing a fully engineered warehouse racking system. Purchasing steel structures without analyzing weight distribution, vertical clearance, and forklift aisle turning radiuses leads to major financial losses or, worse, catastrophic structural collapse due to overloading. Proper engineering—the exact standard we deliver as an approved warehouse racking manufacturer—always begins by analyzing storage intent, calculating precise safety margins, and optimizing operational workflows to reclaim every wasted cubic meter.
Comprehensive Engineering Comparison Table for Storage Systems
To streamline your decision-making process and protect you from costly structural replacements down the line, the table below outlines the standard technical specifications we provide as an certified warehouse racking supplier:
| Storage System Type | Steel Sheet Thickness (mm) | Load Capacity per Level/Shelf (kg) | Ideal Warehouse Application | Material Handling & Operation Type |
| Heavy-Duty Racking | 1.8 – 2.5 (Roll-formed / Box profiles) | 1,000 – 4,000 kg | Large factories, customs terminals, heavy palletized goods | Full pallets handled via Forklift on advanced storage racks |
| Medium-Duty Racking | 1.2 – 1.5 | 300 – 800 kg | Auto spare parts, carton boxes, apparel storage | Manual hand-stacking via heavy-duty iron shelving |
| Light-Duty Shelving | 0.7 – 1.0 | 50 – 200 kg | Pharmacies, supermarkets, document archiving | Quick manual retrieval using light-duty metal shelves |
In-Depth Breakdown of Warehouse Steel Racking Systems by Capacity and Mechanism
A. Heavy-Duty Racking and Pallet Racking System Solutions
These setups serve as the logistical backbone for distribution centers and heavy industrial plants across Egypt and the Gulf region. They integrate seamlessly into high-density layouts to exploit vertical space, categorized by their mechanical functionality:
Static / Selective Pallet Racking: The most widely used traditional configuration within industrial storage racks. It grants forklift operators 100% direct access to every individual pallet without needing to move adjacent or upper loads—making it the definitive choice for facilities managing diverse SKUs.
Drive-In / High-Density Racking: An engineered high-density configuration where forklifts drive directly into the structural bays to store pallets deep within the racking core. By eliminating conventional aisles, it reclaims up to 85% of the floor space. We have proudly engineered and deployed this system for global food and cold-storage leaders like Juhayna and Nestlé, where premium cold-storage square-footage demands absolute volumetric efficiency.
Pallet Flow / Gravity Racking: A dynamic, smart steel racking system operating on inclined wheel beds or rollers. Utilizing natural gravity, pallets fed from the loading side smoothly glide forward to the picking face. It strictly enforces a FIFO (First In, First Out) workflow, a strategy we heavily implement for our pharmaceutical and food-industry clients to prevent inventory expiration and stock stagnation.
Cantilever Racking: Specifically manufactured without front column obstructions, this heavy-duty system is custom-built to support long, awkward, or non-standard loads. It is perfectly optimized for items like steel pipes, aluminum profiles, and timber packs—matching the heavy-duty systems we fabricated and stress-tested for El Sallab Group.

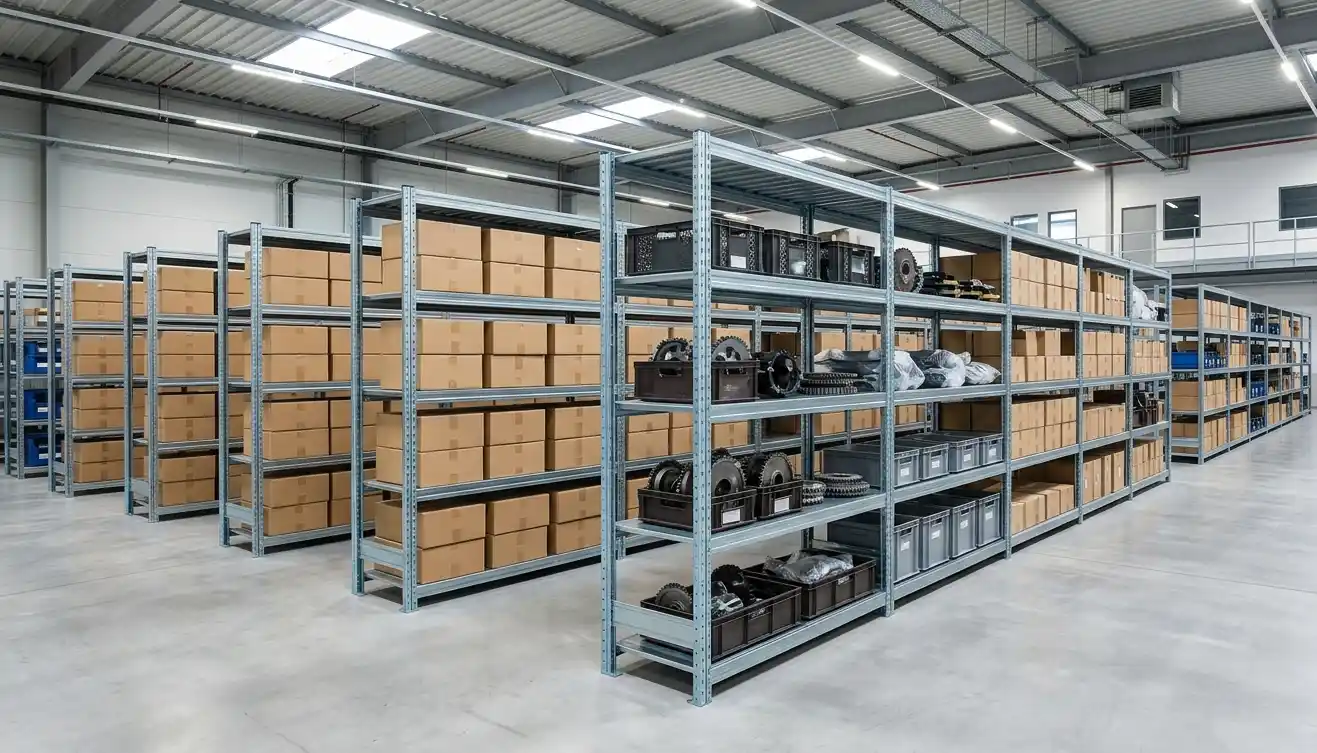

B. Medium-Duty Racking for Warehouses and Spare Parts
When inventory is not stored on pallets, yet bears substantial intermediate weight that would bend basic store shelves, we transition to a longspan shelving system. Its high design flexibility permits easy adjustments of beam levels as stock profiles shift, making it the preferred choice for e-commerce sorting hubs, fulfillment centers, and auto parts distributors.

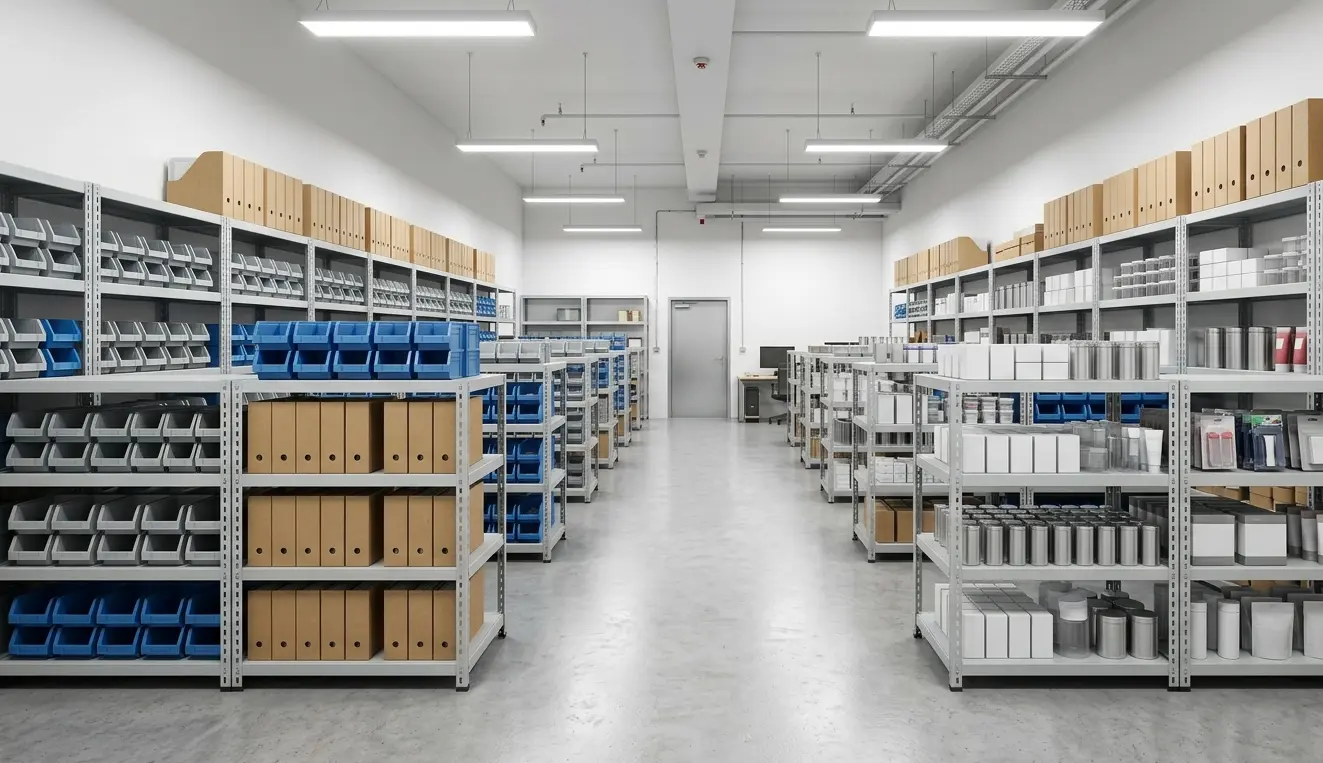

C. Light-Duty Shelving for Shops and Small Storage Spaces
Constructed from treated light-gauge sheet steel (0.7 mm to 1.0 mm), these units form adaptable, highly versatile iron storage tiers. They feature rapid boltless click-in assembly or standard nut-and-bolt configurations, offering the ideal organizing solution for medical pharmacies, archiving vaults, corporate offices, and back-of-house retail storage.
How to Choose the Right Racking System for Your Warehouse?
To pinpoint the perfect structural setup and avoid overpaying for unnecessary steel gauges—or under-specifying a system—our engineering team executes an audit based on these critical parameters:
Inventory Profile and Load Format: Are your items loose, hand-loaded cartons, or large loads stacked on wood or plastic pallets requiring a heavy pallet racking system?
Actual and Maximum Weight Calculations: We isolate the exact maximum weight per level (e.g., individual pallet weight × number of pallets per bay) to engineer a safe structural deflection limit.
Net Warehouse Clear Height: We measure the absolute clear ceiling height to map out maximum vertical levels while preserving mandated clearance for overhead fire sprinkler networks.
Forklift Technical Specifications: Racking aisle spacing is dictated entirely by your material handling equipment’s turning radius (whether using standard counterbalance forklifts needing wider aisles or specialized Reach Trucks built for narrow-aisle operation).
Safety and Quality Standards in Steel Racking Manufacturing and Installation
The durability of a heavy-duty steel racking system is determined by strict manufacturing and engineering parameters. As a trusted regional warehouse racking manufacturer, we adhere to global codes to secure operational facilities:
Welding and Joint Execution: All welding is executed by certified professionals under rigid engineering supervision following international codes (such as the American Welding Society – AWS). This guarantees joint fusion entirely free of internal gas pockets or micro-cracks that would compromise integrity under load.
Industrial Electrostatic Coating: Before entering the powder-coating phase, the steel undergoes complex chemical pre-treatments, including multi-stage washing and phosphating to eliminate oils and prevent rust. It is then thermally fused with electrostatic powder coating in curing ovens, producing an industrial-grade defense shield against moisture, acid exposure, and heavy friction scratches.
Solid Floor Upright Protectors: We supply and anchor reinforced steel deflector guards directly into the concrete around upright racking columns. These shields absorb inevitable impacts from moving forklifts, preventing column twisting that could otherwise trigger an entire bay failure.
The Racking Market and Our Success Partners
The logistics and industrial storage systems market across Egypt and the GCC (particularly in Saudi Arabia and the UAE) is experiencing an unprecedented investment surge in 2026, fueled by mega logistics cities, dry ports, and rapid e-commerce expansion.
Through years of structural excellence, we have earned a premier rank among elite racking providers, securing the trust of dominant corporate enterprises. We are privileged to serve as the official partner and permanent supplier for their central distribution hubs, including:
Juhayna & Nestlé: Complete engineering, supply, and installation of high-density deep-freeze drive-in racking.
Breadfast: Designing and equipping fast-fulfillment dynamic racking setups for high-velocity FMCG turnover.
LG: Constructing heavy-duty final-product warehouses engineered for high-tonnage multi-tier block stacking.
El Sallab Group: Structuring heavy cantilever systems engineered for massive weights and specialized long-length storage of premium ceramics and marble slabs.
Warehouse Storage Racks Prices in 2026 (Egypt & GCC)
Total setup costs vary based on dimensions, clear vertical heights, operational levels, and the necessary steel gauge profiles. True commercial engineering calculates costs based on the “Cost per Pallet Position” or cost per shelving bay rather than arbitrary square-meter estimations.
The average market pricing guidelines for 2026 (benchmarked in USD for standardized commercial calculations across Egypt and the Gulf) run as follows:
Heavy-Duty Racking Systems: The cost per Pallet Position (inclusive of fabrication, logistics, and on-site anchoring) ranges between $35 to $65 USD, fluctuating based on upright frame heights, beam profiles, and system choice (Selective vs. Drive-In).
Medium-Duty Systems: Individual longspan shelving bays range from $40 to $85 USD, depending on shelf depth, beam lengths, and exact safe working load capacities.
Light-Duty Shelving Units: Standard boltless or bolted multi-tier metal shelving units (4 to 5 shelves for office or commercial storage) range between $25 to $50 USD per structural bay.
FAQ
Q1: Do your industrial storage systems include an official warranty?
A: Yes, absolutely. All our structural solutions carry an official certified warranty spanning 5 to 10 years covering manufacturing defects, welding structural integrity, and material failures—provided operations remain within specified load limits.
Q2: Can we dismantle and relocate the warehouse racking if our facility moves?
A: Definitely. Our modern systems feature a completely modular teardown design utilizing hook-in connectors and heavy-duty floor anchor bolts. The entire steel structure can be uninstalled, transported to a new location, reassembled, and even reconfigured vertically with zero material waste.
Q3: Do you provide on-site engineering site surveys and layout designs for free?

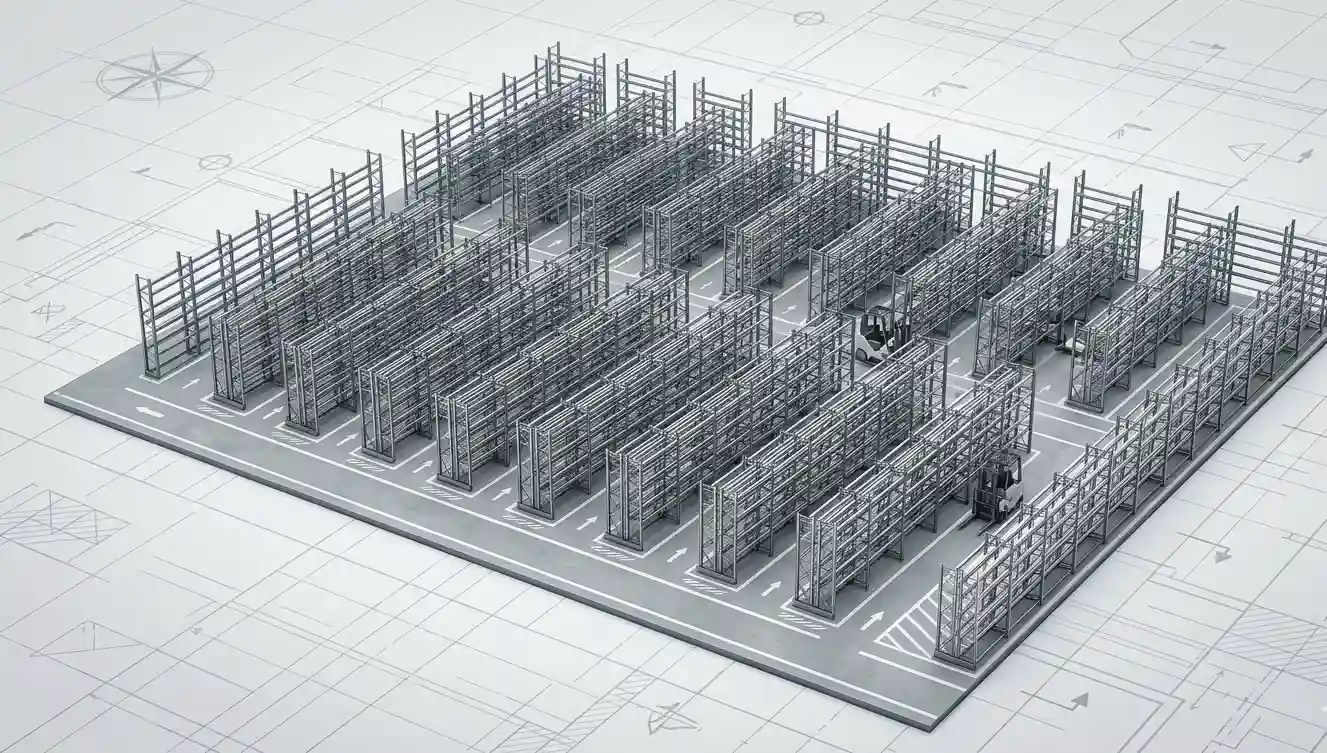

A: Yes. Our engineering team dispatches technical experts to your site anywhere in Egypt or the GCC to record laser measurements, analyze flooring load capacities, and generate detailed 2D and 3D CAD layout mockups detailing exact storage capacities and forklift traffic flows completely free of charge before production.
Request an Engineering Consultation for Total Cost Estimation
Investing in a premium steel racking system using calculated data guarantees maximum volumetric storage, increases order picking speeds, and—critically—insures your team and assets against warehouse workplace hazards.
Ready to calculate the exact comprehensive setup cost for your warehouse? Avoid loose cost guesstimate numbers that risk your project budget. Contact our engineering consultants today through our [Contact Us Page] to arrange a complimentary site survey. Our team will map out your exact facility dimensions, draft an optimized layout, and present an line-item itemized quote tailored precisely to your inventory metrics and operational budget.
